General Specification

VISION PROCESSOR

CPU – RAM Disc Intel Atom N270 1.6GHz +945GSE chipset 1GByteRAM CF-Card Disk
Grafics & LinK Analog CRT, supports QXGA (2048x1536pixels 1GbE Ethernet port
I/O PC COM Ports: 2xRS422-485 2xRS232 4xUSB 2.0 PS2-Key-Mouse
Integrated PLC CPU Delta SA02 8xIsolated Input 24V – 6xIsolated Transistor Outputs 1xRS485 – 1xRS232
Camera Input Dual 1394b FireWire Ports 800Mbps. Until 8 Cameras with 1394b Hubs
Power Supply 6-36Volts DC -20ºC to70ºC Fanless Operation
Dimensiones 210mm (W) x 170mm (D) x 53mm (H) VESA 100 Mounting kit Wall-Mount

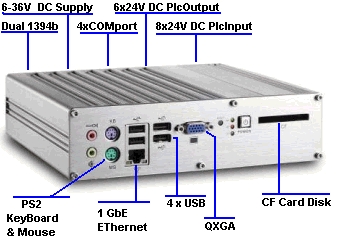

view

SOFTWARE

  • O. S. Windows 7-32Bits
  • Avicw V7 Visión Builder
  • Bridge2ModbusRTU. Link Avicw -PLC
  • Delta PLC Software Developer
  • Example Avicw Programs
  • Example PLC programs
  • Easy Trigger Camera & Discriminate – OK-NOK according Vision response



  1. ACCESSORIES

  • 5 mts Cable Fire-Wire1394b Link Camera-Vision Processor
  • 5Mts  cable Trigger + Light Strobe24V-3A
  • PLC RS232 Programming PLC cable

CAMERA

Resolution 640x480pixels Color RGB 24bits Data (op. Black and White)
Shutter from 10microseg  to 1seg.   External Trigger & Strobe Light Control
Connection FireWire IEEE1394b 800Mbps     80frames/second
Pixel Size 7.4 x 7.4 micr    1/3”   Sony ICX424
Optics

C-mount. Included12mm F1.4 Megapixel optics

Dimensions 30mm x30mm 60mm ( with optics)
